The Luxar LED Trough Lighting
High-Bright is almost the brightest Trough Light available in the UK, at 1400 lumens per metre.
We've upgraded our Troughlighting to the latest and and brightest 24v 3528 LED chip sets. (from 13-2-2017)
We use only the highest quality components - all of which are rated IP65 (or higher) against the weather, which allows us to give a 2 year guarantee.
We also offer a choice of colour, Cool White (the most popular) and Warm White for a softer hue.
- More energy efficient
- Lower maintenance cost
- Consistant illumination
- Low Carbon Footprint
Length of LED Trough - We manufacture all our Trough Down Lights specifically to your required length.
Please Note:- Due to carrier constraints, any length over 16' will be supplied in 2 or more sections.
LED Colour - Cool White (the most popular) or Warm White for a softer hue.
Colour (body & brackets) - Black or White are standard colours.
Cable Entry - Which side the cable is to be, as you are facing the sign.

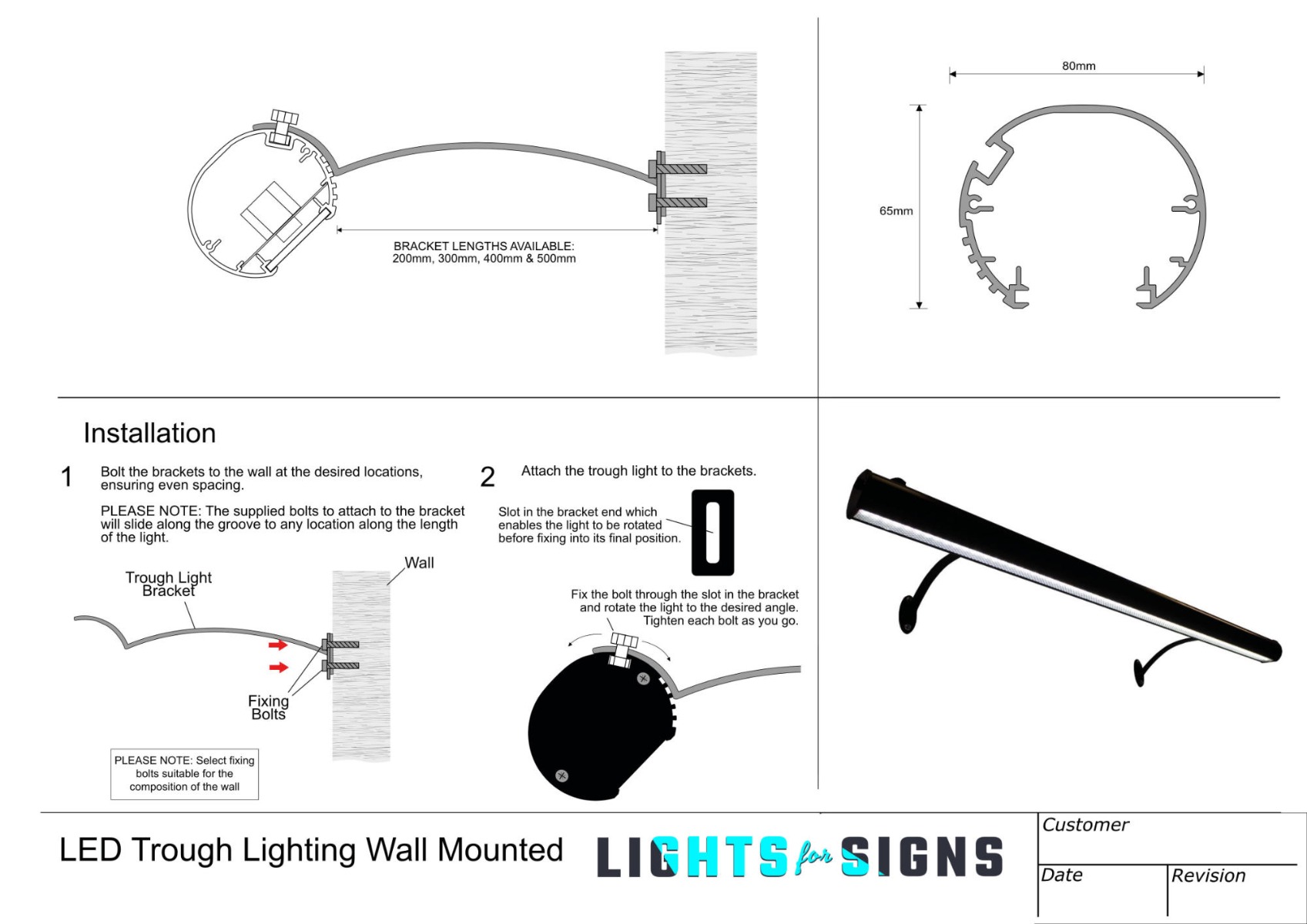

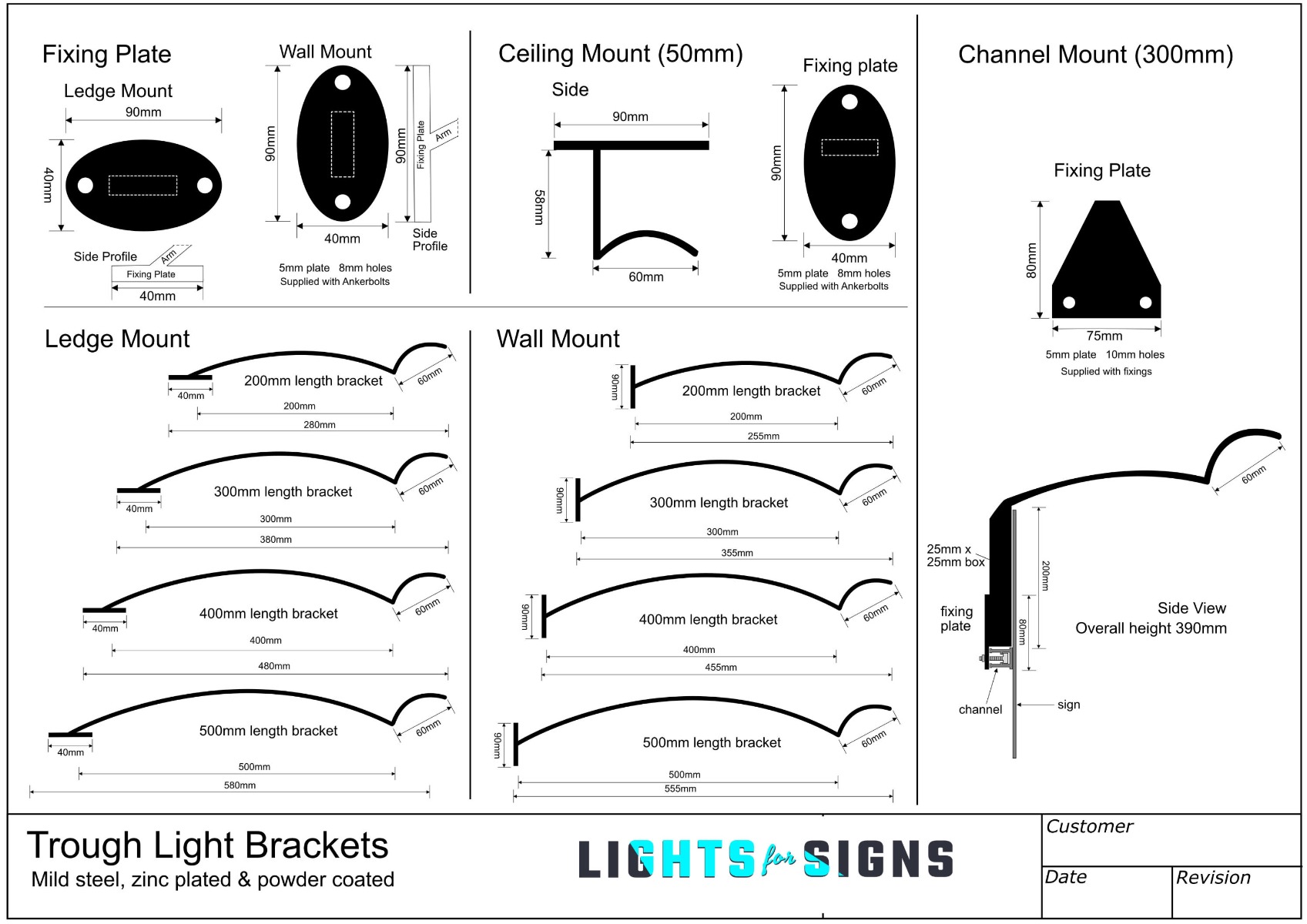

Mounting Brackets - Choose from 4 sizes depending on your facia length.
- For fascias up to 400mm deep we recommend 200mm long brackets.
- For fascias up to 600mm deep we recommend 300mm long brackets.
- For fascias up to 1500mm deep we recommend 400mm long brackets.
- For fascias over 1500mm deep we recommend 500mm long brackets.
Photocell Switch - Photocell switches are designed to automatically switch your lights on at dusk, and off at daybreak, when positioned within a clear unobstructed view of daylight, avoiding shaded areas and direct or reflected light from other sources. We offer two types, a built in (pre-wired) version, and a seperate wall mounted option(for your electrician to connect).
Built in version Switching point is 70 Lux. To test, covering the Photocell will switch your lights on within 40 seconds, and uncovering the photocell will turn them off within 40 seconds. (don't use fluorescent lighting to test as they may not be sufficient to demonstrate full functionality)
Wall mounted version Switching points - On<20Lux, Off>80Lux. Ideally mounted where the Photocell can 'see' North. When testing, the lights will operate within 15-120 seconds of the unit being covered, and turn off within a similar perion of the cover being taken off the Photocell unit. The unit must be fitted by a suitably quallified person.
Delivery - 3-5 days Black or White.
Light Strip - High Bright
- Internally mounted inside the aluminium case
- IP67 rated
- 60 2835 SMD LED chips per metre
- 24volt, 12w per metre
- 1440 lumens per metre
- Chipset 2835
- Either Cool White (6000k) Lux 243 and Warm White (2800-3200k) Lux 325 options.
- Link to Lux to Candela conversion - https://www.rapidtables.com/calc/light/lux-to-candela-calculator.html
Driver:
- Internally mounted inside the aluminium case
- IP67 rated
- Mean Well LPB-60-24 or equivalent
- Input: 100-240v 2.2A 50/60Hz
- Output: +24v 4.2A
Photocel Switch: Built in
- Internally mounted inside the aluminium case
- Royce Thompson P12HE
- 70 LUX
- Input: 230v (+/- 10% Load: 2x250w
- Switching point is 70 Lux
Photocel Switch: Externally Mounted
- Externally mounted
- Royce Thompson P12HE
- 70 LUX
- Input: 230v (+/- 10% Load: 2x250w
- Switching points:- On<20Lux, Off>80Lux
Bracket Fix Plate Dimensions: 61 x 36mm portrait
Supplied with 3 metres 3 core 0.75 flex - to be connected by suitably qualified electrician.
All components are IP rated for outdoor use.
